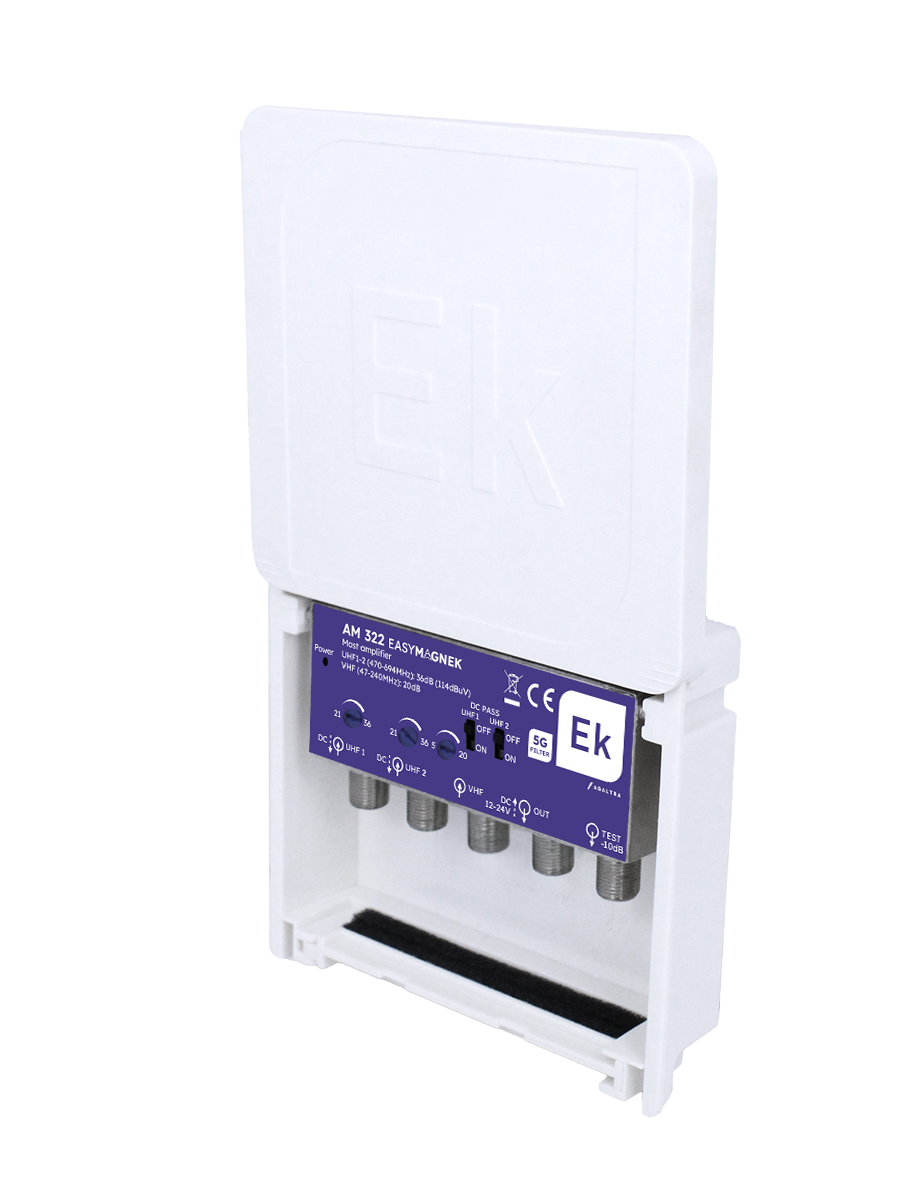

AM 322 EASY MAGNEK
051017
Mast amplifier 3 inputs: VHF (47-240 MHz) / 2xUHF (470-694 MHz). G: 20dB (VHF) / 2x36dB (UHF). Output level (DIN 45004B): 114dBμV. Power supply: 12-24Vdc. Switchable DC current pass in UHF1 and UHF2 inputs. TEST output (-10dB). With 5G high rejection filter
